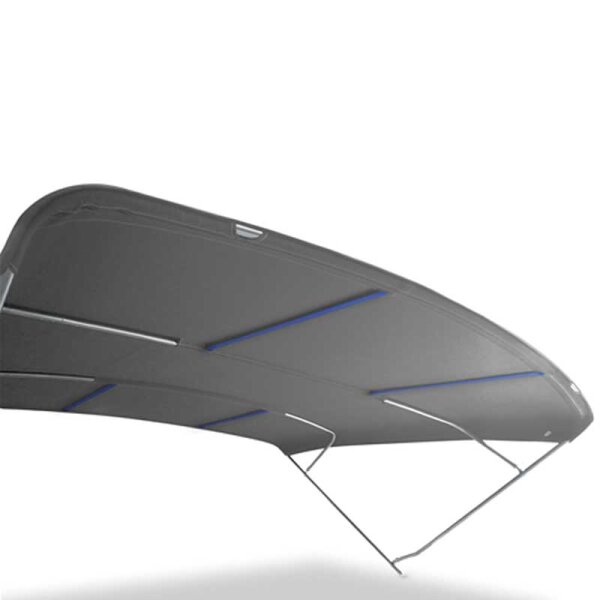

Bimini-Top EXCLUSIVE with 4 arches and Ø 30 mm stainless steel frame
Due to its dimensions, bimini is suitable for all large boats and yachts. This model is very stable due to its combination of Ø 30 mm stainless steel tubes and stainless steel joints. Thanks to this robust design, it is also possible to drive with the top down up to 30 knots without any problems.
This top is manufactured individually according to your dimensions. All deviating size changes that are within the size ranges specified by us are made without extra charge.
Example: When selecting the size (width 175-335 cm / length 300-400 cm / height 140 cm), you can, for example, order the size individually (width 298 cm / length 305 cm and height 140 cm) without the price being changed by the custom made changes.
When ordering, you only have to write us your required dimensions in the comment field at the end of the order process.
Due to the greater lengths of 300 to 400 cm, this model offers significantly more shade than the bimini top model Royal with 3 arches and even than the one with 4 arches.

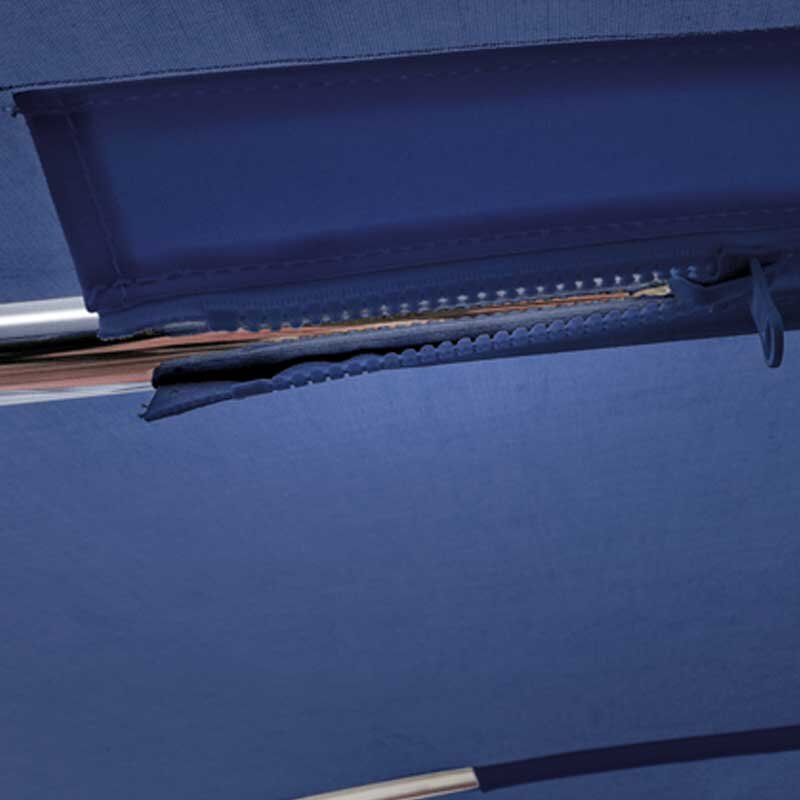

The standard version of this model already has integrated zips under the roof struts to ensure easy removal, cleaning and waterproofing of the hood.
For particularly large widths, Velcro straps are also attached below the bimini top to keep the canvas perfectly taut.
Frame details
Dismountable structure (Ø 30 mm) AISI 316 polished Stainless steel tubes.
Fabric details
The high-quality, 100% resin-coated acrylic fabric SUNBRELLA® PLUS (360g/m²) is used for the sunroof. It has an anti-fungal coating, making it mold resistant and easy to maintain. Thanks to the resin-based coating, the canvas is waterproof and UV-resistant. The fabric complies with the ISO 4920 standard and is available in 17 different colours. This solution-dyed acrylic fabric features piqué effects and color references to best coordinate with your boat.
Joints and screws

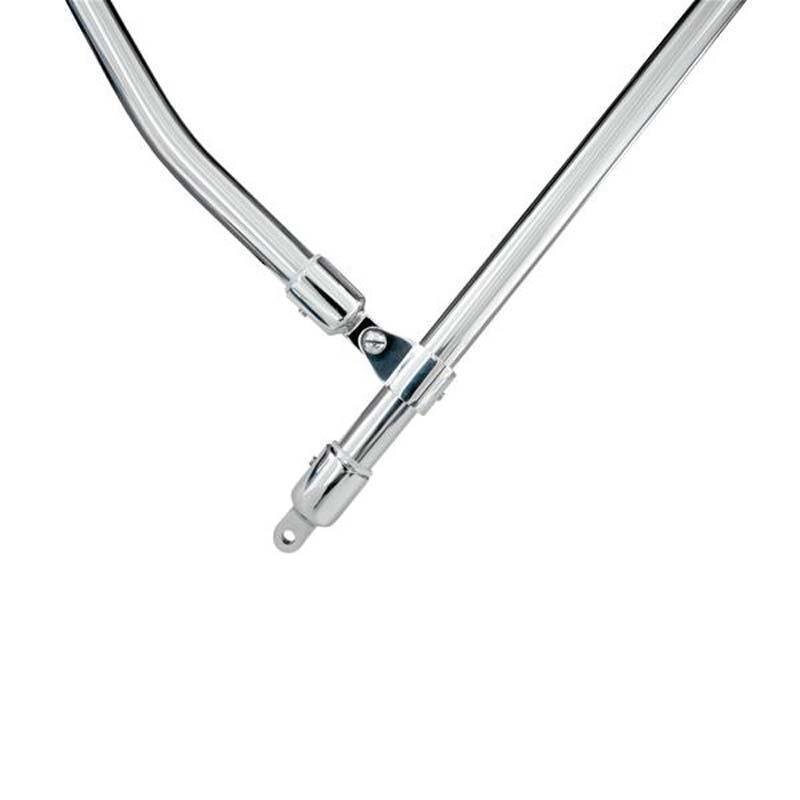

AISI 316 stainless steel joints reinforced and stainless steel screws.
Max. speed
The maximum recommended speed when cruising and the bimini is set up is 30 knots.
Dimensions
The bimini top is available in two different heights (C) 115 cm or 140 cm:
The height (D) of the folded convertible is 170 cm with a height of 115 cm and 190 cm with a height of 140 cm.
The length (B) is according to your dimensions.
When the bmini top is completely folded and Ready to store the dimensions are: width x 40cm (16") x 8cm(3")

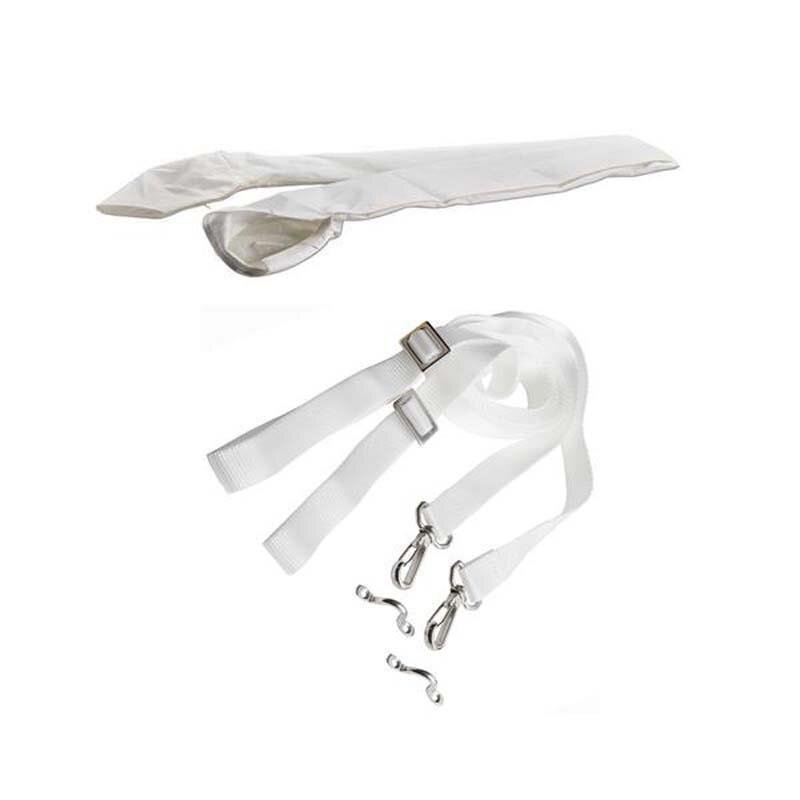

Scope of delivery
- Zippered storage bag (same colour like the bimini)
- 1 pair of straps
Please note that the fittings to mount your bimini to your boat are not included. These must be ordered separately.
The scope of delivery only includes the bimini frame fittings (see article picture).
The starting point
The first measurement to take is the width between the right centre gunwale to the left centre one of the boat or, in case of an inflatable boat, the width between the right centre tubular to the centre left one.
From this size it can be evaluated which model of Bimini Top can be installed.
Installation guide for bimini top "EXCLUSIVE"

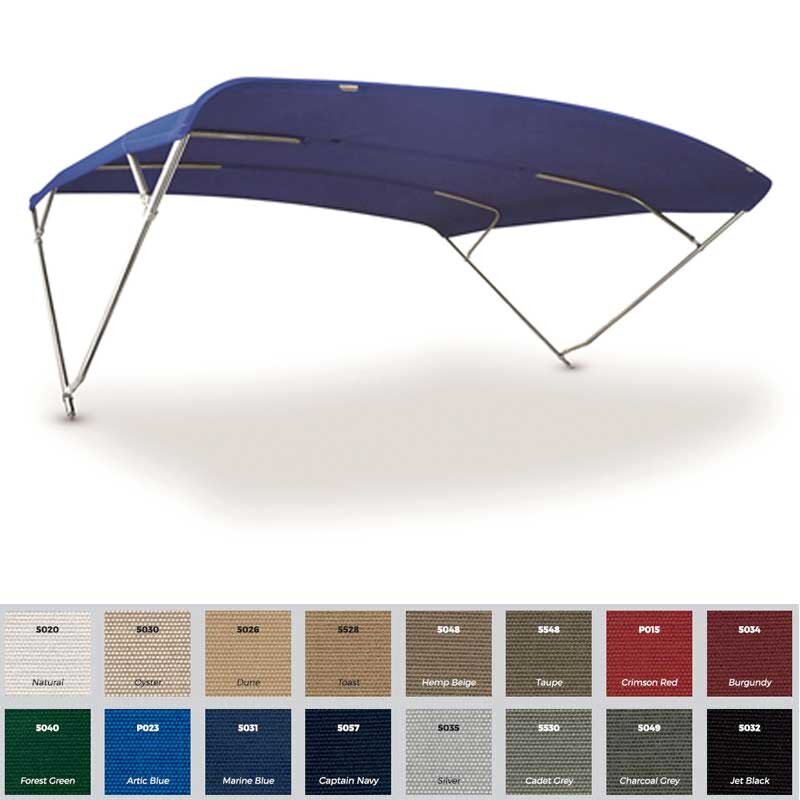

Fabric colour chart
SUNBRELLA PLUS fabric datasheet
