KUS Analog Trim Indicator / Trim Gauge (Vertical) 160-0 Ohms - Black

sold in last

watch this article

26,00 €

incl. 19% VAT, plus

Version: Black (10–167 ohms) – Vertical KUS trim gauge in black. Specifically calibrated for the 10–167 ohm characteristic curve, ideal for Mercury, Volvo Penta, and Yamaha engines. For 12V/24V.

For this product you will receive 26 Reward Points

Color black
black blackwhite white
Signal 160-0 Ohm
0-190 Ohm 0-190 Ohm160-0 Ohm 160-0 Ohm

Nur noch 2 Stk auf Lager!

Pcs.

2 Pcs. In stock

Delivery time: 2 - 3 Workdays

Verbleibende Bestellzeit: 21 Stunden und 16 Minuten. Wir versenden Ihre Bestellung am 24.9.

Stock in the external warehouse 7 piece
Delivery time: 3 Working days

KUS Analog Trim Indicator / Trim Gauge (Vertical) 160-0 Ohms...

26,00 €

incl. 19% VAT, plus

Pcs.

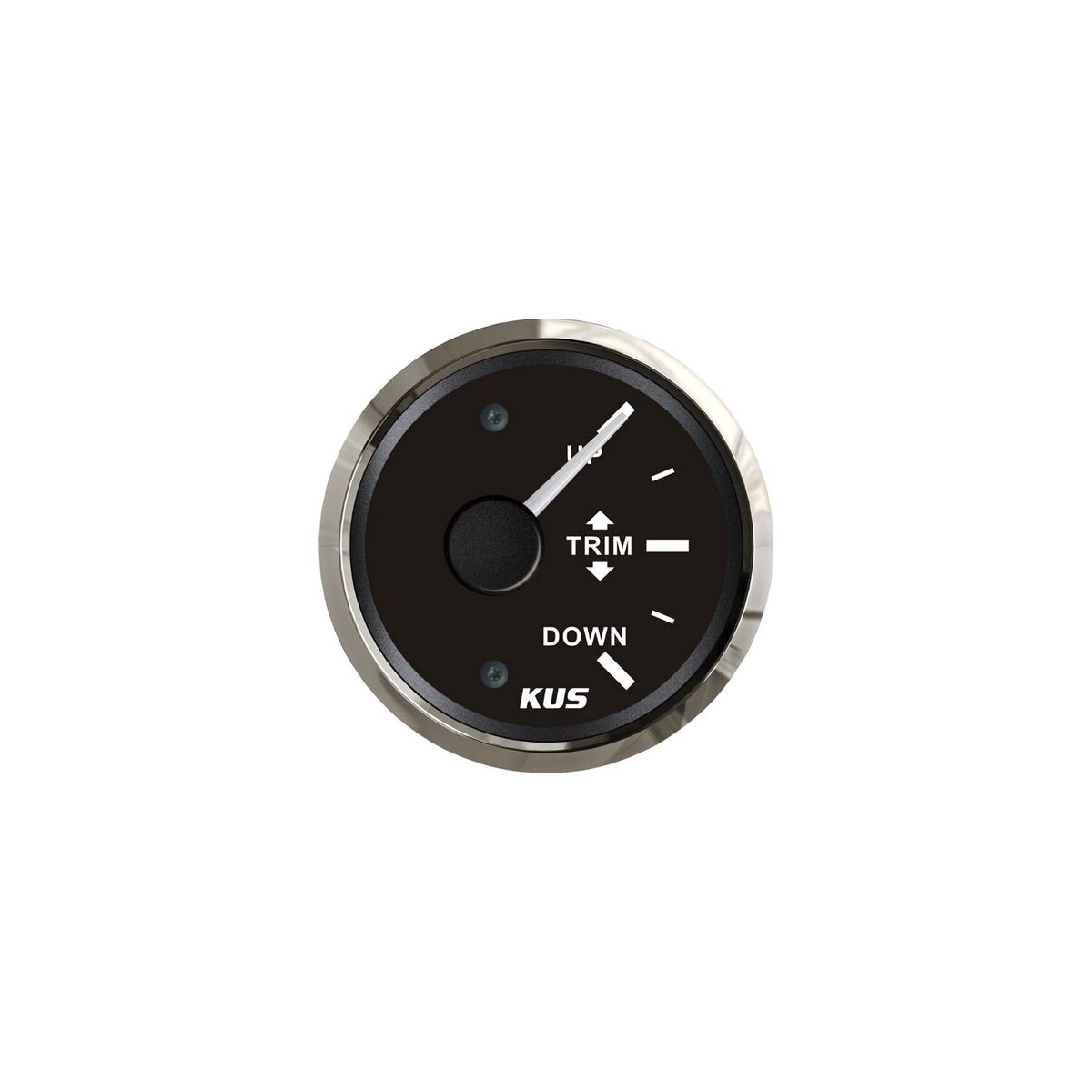

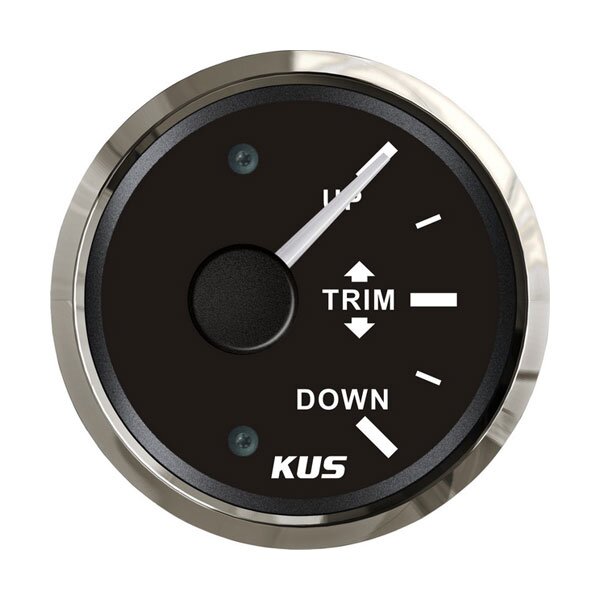

KUS Marine Analog Trim Gauge VERTICAL 52mm – Perfect Control Over Your Engine Angle

Optimize your boat’s trim and save a noticeable amount of fuel! The analog KUS trim gauge with vertical pointer movement (DN - UP) provides you with immediate and precise feedback at the helm on the current tilt angle of your outboard or Z-drive. Only with the optimal trim setting can you achieve maximum planing speed and prevent dangerous rocking of the hull.

Thanks to the universalmarine mounting diameter of 52 mm (2"), this round gauge integrates seamlessly into any existing instrument panel. The polished stainless steel ring (AISI 316 / NIRO) provides lasting protection against corrosion in the saltwater-exposed cockpit.

⚠️ Important Note on Ohm Compatibility (Resistance):

To ensure your vertical trim gauge functions correctly, the ohm range must match exactly the transducer on your outboard motor or Z-drive. Please select the correct variant above:

0–190 ohms: The European standard, compatible with many modern engines and KUS standard sensors.
10–167 ohms: The American/international standard, primarily compatible with engines from **Mercury, Mariner, Volvo Penta, and Yamaha**.

Advantages & Technical Highlights at a Glance:

Intuitive vertical scale: Classic DN-to-UP display (Down to Up). The pointer moves from bottom to top in sync with your engine’s actual movement.
100% Waterproof (IP67): The front of the dial is completely dust- and waterproof according to IP67. The double-layered, reinforced anti-fog glass guarantees a clear, condensation-free view at all times.
Dual Operating Voltage: Can be used directly in 12-volt and 24-volt vehicle electrical systems without additional conversion kits.

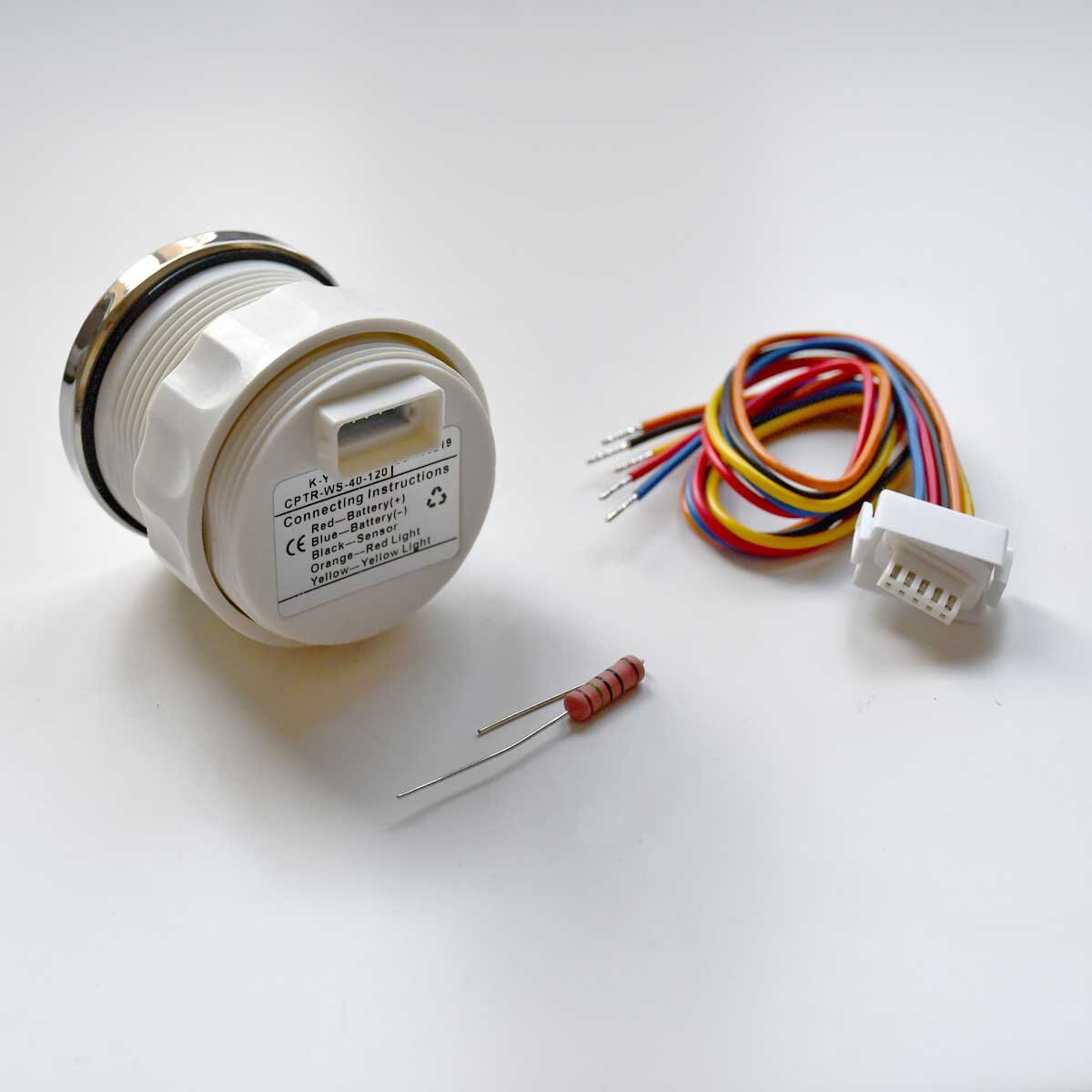

Selectable LED Backlighting: During installation, you can easily switch the backlight between a bright red/orange or yellow via the wiring.

Technical Data (Specifications):

Feature	Specification / Value
Manufacturer / Brand	KUS
Model Series	Sea V (Analog Trim Indicator, Vertical)
Mounting Diameter	52 mm (2 inches)
Output Signals (Selectable)	0–190 ohms or 10–167 ohms
Front Protection Rating	IP67 (water- and dust-tight up to 1 meter)
Operating voltage	12 V / 24 V DC
