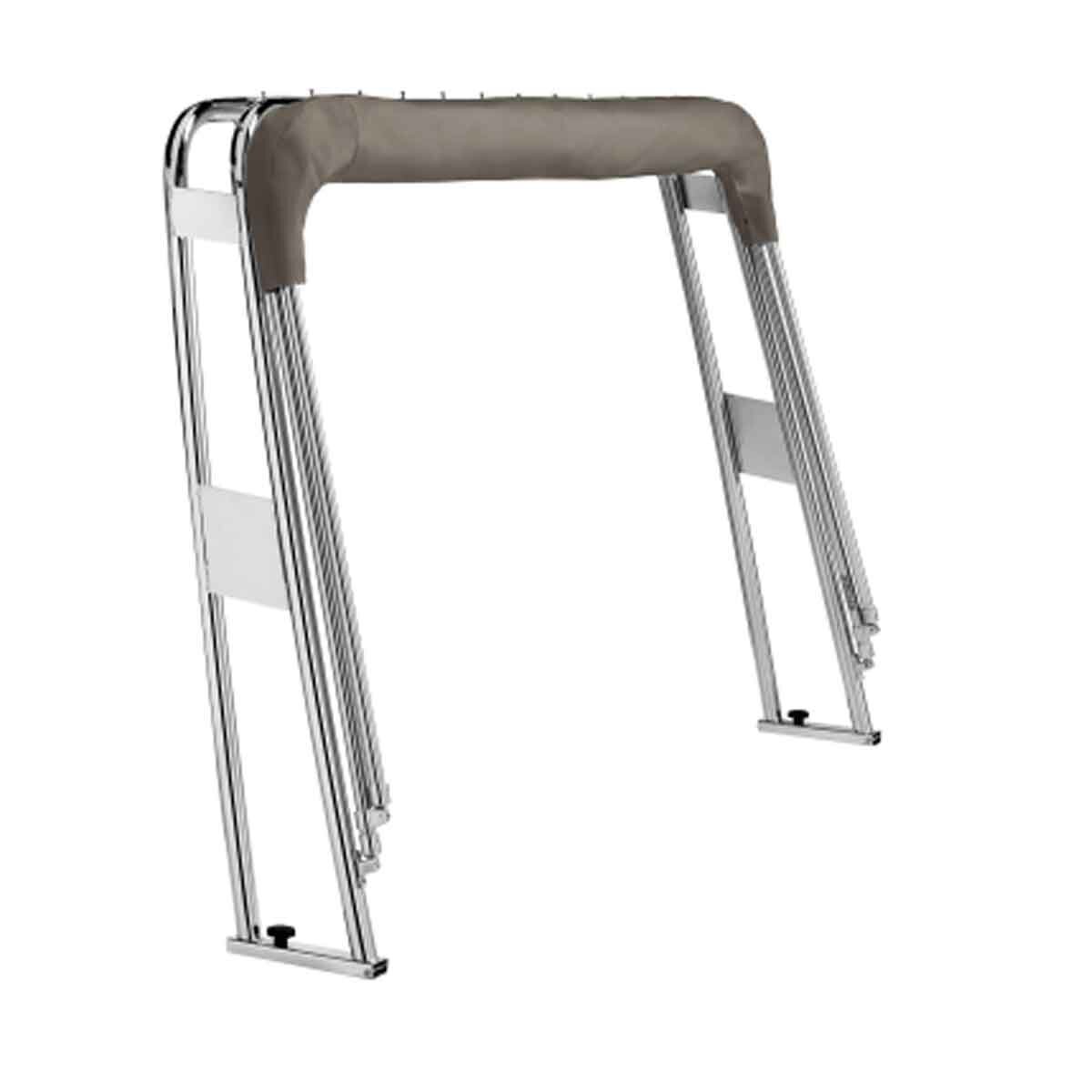

Bimini-Top EXCELLENT with roll bar GOMMONE
The Bimini top EXCELLENT is practical to use and offers a very stable design. Thanks to the telescopic construction made of polished AISI316 stainless steel, it can be opened and closed simply by pressing the integrated spring pins.
This bimini is supplied including the roll bar "Gommone". It has a large front section that provides plenty of shade. The roll bar can also be folded down at the mounting plates. The canvas is joint to the roll bar by stainless steel Norwegian knobs positioned on the upper board
Note: The available sizes refer to the installation width, from the centre of the plate to the centre of the plate.
Bimini and roll bar frame details
The roll bar has a very robust frame (Ø 40 mm) made of highly polished stainless steel (AISI 316). The frame of the bimini top itself is made of telescopic stainless steel tubes (Ø 22/25 mm). The bimini has 2 front brackets. The roll bar itself can be folded down at the bottom.
The high-quality, 100% resin-coated acrylic fabric SUNBRELLA® PLUS (360g/m²) is used for the sunroof. It has an anti-fungal coating, making it mold resistant and easy to maintain. Thanks to the resin-based coating, the canvas is waterproof and UV-resistant. The fabric complies with the ISO 4920 standard and is available in 17 different colours. This solution-dyed acrylic fabric features piqué effects and color references to best coordinate with your boat.
Joints and screws
AISI 316 stainless steel joints reinforced and stainless steel screws.
The maximum recommended speed when cruising and the bimini is set up is 30 knots.
The bimini top has a height (C) of 130 cm.
The length (B) is 190 cm.
The width (A) depends on your width choice.
The dimensions of the mounting base is (C) 5 cm and (D) 27 cm.
Scope of delivery
- Zippered storage bag (same colour like the bimini)
The starting point
The first measurement to take is the width between the right centre gunwale to the left centre one of the boat or, in case of an inflatable boat, the width between the right centre tubular to the centre left one.
From this size it can be evaluated which model of Bimini Top can be installed.
