• Bimini-Top ROYAL with 3 arches / height 140 cm - width 215 cm - Burgundy (5034)
  • Bimini-Top ROYAL with 3 arches / height 140 cm - width 215 cm - Burgundy (5034)
  • Bimini-Top ROYAL with 3 arches / height 140 cm - width 215 cm - Burgundy (5034)

Bimini-Top ROYAL with 3 arches / height 140 cm - width 215 cm - Burgundy (5034)

10 watch this article
927,10 €
incl. 19% VAT , plus shipping costs

This model is recommended for the installation on boats, RIBs and sailing boats. It is available in three different heights, various sizes and 17 different Colours.

For this product you will receive 1017 Reward Points
  • Dimensions
  • Colour
Configure
Must be ordered. Ready for shipment in 7 days after order.
Delivery time: 10 - 13 Workdays
Bimini-Top ROYAL with 3 arches / height 140 cm - width 215 cm - Burgundy (5034)

Bimini-Top ROYAL with 3 arches / height 140 cm - width 215...

927,10 €
incl. 19% VAT , plus shipping costs

Accessory selection

Choose suitable accessories for this Bimini Top and save up to 10% discount.

optional
  • Premium bimini top EPDM mounting kit for inflatables - PVC
    5% Discount +104,41 €

    Premium Bimini-Top mounting kit for PVC inflatables / RIB'S

    These high quality fork hinges are made from polished AISI 316 stainless steel and vulcanized to a flexible backing plate made from Grey EPDM material.

    EPDM support has been designed to be glued on the RIB tubes.
    The appropriate 2-component adhesive for PVC material is included in the scope of delivery. (125ml)

    These supports allows easy assembly and disassembly of the bimini top.

    Dimensions fork: 90x40 mm
    Dimensions EPDM plate: 188x135 mm
    Color EPDM plate: Grey (RAL 7035)

    Quantity: 1
  • Premium bimini top EPDM mounting kit for inflatables -...
    5% Discount +104,41 €

    Premium Bimini-Top mounting kit for Hypalon / Neoprene inflatables / RIB'S

    These high quality fork hinges are made from polished AISI 316 stainless steel and vulcanized to a flexible backing plate made from Grey EPDM material.

    EPDM support has been designed to be glued on the RIB tubes.
    The appropriate 2-component adhesive for Hypalon / Neoprene material is included in the scope of delivery. (125ml)

    These supports allows easy assembly and disassembly of the bimini top.

    Dimensions fork: 90x40 mm
    Dimensions EPDM plate: 188x135 mm
    Color EPDM plate: Grey (RAL 7035)

    Quantity: 1
  • Stainless steel deck hinge set with snap hooking system
    5% Discount +28,88 €

    Deck hinge set with snap hooking system for bimini-tops

    Deck hinge set with snap hooking system made from AISI 316 Stainless steel (premium quality).
    Easy and quick assembly and disassembly of complete bimini-top.

    Dimensions: 90x40 mm
    Opening width : 7 mm
    Ø bolt: 6 mm

    Quantity: 1
  • Stainless steel 180° swiveling deck hinge set for...
    5% Discount +25,27 €

    180° swiveling deck hinge set for bimini tops

    These 180° swiveable deck hinges are made from polished AISI 316 stainless steel. (premium quality).

    The fittings can be used for mounting on the hull on deck.

    Quantity: 1
  • Stainless steel deck hinge set with swivel ball for...
    5% Discount +62,70 €

    Deck hinge set with swivel ball for bimini tops

    These deck hinges have a 360° swviel ball. Made from polished AISI 316 stainless steel. (premium quality).

    Dimensions: Length = 82 mm, Width = 29 mm.

    Available for Ø 22 and 25 mm tube.

    Quantity: 1
  • Stainless steel flush mount deck hinge set with snap...
    5% Discount +56,81 €

    Flush mount deck hinge set with snap hooking system for bimini-tops

    Flush mount deck hinge set with snap hooking system made from AISI 316 Stainless steel (premium quality).
    Easy and quick assembly and disassembly of complete bimini-top.

    The removable spigot can be turned and locked horizontally in 90° steps in the installation base.

    Base dimensions: 54x29 mm
    Bolt Ø: 6 mm
    Opening width: 8 mm
    Total height: 50 mm

    Quantity: 1
  • Stainless steel railing mount joint fitting set for...
    5% Discount +33,16 €

    Railingmount quick release joint fitting set for bimini tops

    Made from polished AISI 316 stainless steel.

    With locking lever for quick opening and closing of the slider on the railing tube. This makes it easy to slide the holder back and forth or move it on the railing tube. The eye end of the bimini can also be assembled and disassembled with a spring pin without any tools.

    Available for Ø 22 und 25 mm railing tubes.

    Quantity: 1
  • Stainless steel rail mount fitting set with swivel ball...
    5% Discount +51,30 €

    Railing mount fitting with swivel ball for bimini tops

    These railing mount joints have a 360° swivel ball and are made from polished AISI 316 Stainless steel. (premium quality).

    Dimensions: Length = 97 mm, Width = 32 mm.

    Availabe for Ø 22 and 25 mm tube.

    Quantity: 1
  • Struts for Bimini-Top ROYAL with 3 arches Ø 22 mm...
    10% Discount +169,74 €

    Ø 22 mm stainless steel tube (polished) - 1 meter length.

    Quantity: 1
  • TEXAKTIV Clean & Guard kit for Bimini-Tops
    +49,00 €

    TEX'AKTIV clean and care kit for Bimini-Tops

    Tex'Aktiv CLEAN fabric cleaner from SUNBRELLA / DICKSON

    Powerful outdoor fabrics cleaner recommended to eliminate stains and odours from sun shades, Bimini-Tops, cushions and deckchairs textiles.
    The use of TEX'AKTIV CLEAN will reduce the waterproof properties of textiles. So, after each cleaning process it is necessary to apply TEX'AKTIV to remake fabric waterproof and protect them from dirt.

    Yield: about 15 m² per 1 Liter.

    TEX'AKTIV GUARD waterproofing agent from SUNBRELLA / DICKSON

    Fabric waterproofing agent with water-repellent effect. TEX'AKTIV GUARD protects fabrics agaist stains and dirt build-up. This product is ideal for marine textiles, cushions and sun shades. It prevents water and grease from penetrating into the fabric. The colourless beading effect gives all your outdoor fabrics a fresh boost!

    Yield: about 15 m² per 1 Liter.

    Quantity: 1
  • Stainless steel deck hinge set for bimini straps
    5% Discount +58,71 €

    Deck hinge set for bimini top straps

    These high-quality fittings made of  polished AISI 316 stainless steel are suitable for mounting on deck or other flat surfaces. With detachable bracket that can be continuously adjusted from 5° to 125°.

    The fittings are supplied including white rubber pads. The belt tensioning bolt is equipped with a corrugated profile and thus prevents the tension belts from loosening unintentionally and on their own.

    Max. strap width : 30 mm
    Base dimensions: 69x34 mm
    Bolt circle: 45 mm

    Quantity: 1
  • Rail system PREMIUM for Bimini-Tops - Complete-Set
    10% Discount +298,44 €

    Complete rail kit "PREMIUM" for Bimini-Tops

    This heavy-duty rail set is recommended for Bimini-Tops with Ø 25 mm or Ø 30 mm Stainless steel frame and also for large boats.

    The rails and all fittings are made of polished AISI 316 stainless steel and allow the bimini to be moved. With heavy-duty deck fittings.

    This high-quality rail system also impresses with its elegant appearance, which is achieved through the two-part rail construction with concealed screws. The fittings are mounted on a sliding carriage with a stopper.

    The set includes:

    • 2 stainless steel rails (each 120 cm long - can be shortened as desired)
    • 2 sliders which run on the rails and carry the deck fitting
    • 2 deck fittings for attaching the bimini (heavy duty)
    • 2 end pieces for a clean finish to the rail
    • 2 stoppers to fix the bimini in the desired Position
    Quantity: 1

Customization

Upgrade your Bimini Top with attractive and useful customizations made for you directly from the factory with high Quality.

optional
  • Front extension for Bimini-Top ROYAL with 3 arches
    +223,70 €

    Front extension for Bimini-Top ROYAL with 3 arches

    The Bimini Top extension canvas, is used to improve the surface of shade on boats and RIBs.

    Material: Made with the same fabric and colour of the chosen model

    Dimensions: Lenght 150cm - Width as the Bimini-Top.

    Installation: The extension canvas is fixed to the main canvas of the Bimini Top with a detachable zip. At the other end of the extension canvas there are 316 stainless steel rings in which it is possible to pass an elastic rope to be hooked on any point of the boat.

    Quantity: 1
  • Rear extension for Bimini-Top ROYAL with 3 arches
    +223,70 €

    Rear extension for Bimini-Top ROYAL with 3 arches

    The Bimini Top extension canvas, is used to improve the surface of shade on boats and RIBs.

    Material: Made with the same fabric and colour of the chosen model

    Dimensions: Height and width as the Bimini-Top.

    Installation: The extension canvas is fixed to the main canvas of the Bimini Top with a detachable zip. At the other end of the extension canvas there are 316 stainless steel rings in which it is possible to pass an elastic rope to be hooked on any point of the boat.

    Quantity: 1
  • Leteral extension for Bimini-Top ROYAL with 3 arches
    +205,50 €

    Leteral extension for Bimini-Top ROYAL with 3 arches

    The Bimini Top extension canvas, is used to improve the surface of shade on boats and RIBs.

    Material: Made with the same fabric and colour of the chosen model

    Dimensions: Height as the Bimini-Top - Length as the Bimini-Top.

    Installation: The extension canvas is fixed to the main canvas of the Bimini Top with a detachable zip. At the other end of the extension canvas there are 316 stainless steel rings in which it is possible to pass an elastic rope to be hooked on any point of the boat.

    Note: It is also possible to order a single extension canvas that can be hooked on the right or in the left indifferently.

  • Crystal Clear window upgrade for the extension
    +121,00 €

    Crystal Clear window upgrade for the extension

    In order to remain protected from the weather, but still have an overview of the water and still get enough daylight under the Bimini-Top, the extension has a transparent, waterproof and UV-resistant clear window. The extension keeps an all-round, 20 cm wide edge made of the conventional bimini cover material, so that zips and eyelets can also be attached securely and safely.

    Material: Clear PVC (thickness: 0.75 mm = 940 g / m²), UV-resistant and waterproof. Particularly good visual acuity.

    Plesase choose the amount for how many extensions you would like to have a window upgrade.
    If you only want a window in certain extensions, please let us know in the comments field at the end of the ordering process.

  • Mesh upgrade for the leteral extension
    +88,00 €

    Mesh upgrade for the leteral extension

    This upgrade offers the optimal compromise between shade, air circulation and overview due to the integrated micro-perforated SERGE FERRARI Batyline net. The sun's rays are significantly reduced and stagnant heat is avoided more easily. In addition, the net allows a better view to the outside compared to a closed Extension. The extension keeps an all-round, 20 cm wide edge made of the conventional bimini cover material, so that zips and eyelets can also be attached securely and safely.

    Material: SERGE FERRARI batyline with high resistance and high light transmission with low weight (500g/m²). In addition, it is mold-resistant according to EN ISO 846-A and is PVC-coated on both sides using a special coating process, thus protecting the colors from UV rays, wind and weather.

    Plesase choose the amount for how many extensions you would like to have a mesh upgrade.
    If you only want a mesh in certain extensions, please let us know in the comments field at the end of the ordering process.

  • Roller upgrade for the larteral extension
    +66,00 €

    Adding a roller blind for window or mesh extensions

    In order to use the advantages of the crystal clear windows or meshes used in the bimini extensions, but still not want to miss the possibility of having complete sun and privacy protection, these roll-up blinds should be used as an option.

    When rolled up, the roller blind is held in position with two retaining straps and when lowered, it is fixed with attached Velcro strips.

    Material: Same material (same color) as the Bimini top and the extensions.

    Plesse choose the quantity of how many roller blinds you would like to have.
    If you only want blinds on only certain extensions, please let us know in the comments field at the end of the order process.

  • Adding vertical zipper to connect the extensions
    +71,50 €

    Adding vertical zipper to connect the extensions

    By adding this vertical zipper connection, the extensions are connected together, so it is possible to protect yourself even better against environmental influences on board.

    Please choose how many zippers you would like to have.
    If you only want a zipper in certain corners, please let us know in the comments field at the end of the ordering process.

    Please note that if this option is chosen, the front extension will be the same length as the height of the bimini. Not the usual 150cm length for front extensions. By default, the rear and side extensions are set to the height of the bimini top, so no adjustment is made here.

  • Zipper application under the Bimini Top arches
    +49,60 €
    Sewing in zippers for easy removal, cleaning, and reattaching of the soft top to the frame.
  • Application of waterproof LED on Bimini Top
    +94,60 €
    Waterproof LED lighting integrated into the bimini.
    Quantity: 1
  • 360° stainless steel light application on Bimini Top
    +115,80 €
    Installation of a 360° LED anchor light on the canopy.
    Quantity: 1
  • "Racing" customization
    +100,50 €
    Sewing in two racing decorative stripes in the color of your choice.
    Quantity: 1
  • Stainless steel rod holder for T-Top
    +66,40 €

    Customized Print

    Customized printing of color drawings, logos, phrases on helm covers, extension canvases made of polyester or acrylic fabric, PVC or PVC mesh.
    Printed files should be with maximum sizes of 30cm x 30cm and should be in vector format (.ai/.pdf).

    Estimates for other formats and graphic works are possible and can be asked.

Your configuration

product/group price
incl. 19% VAT , plus shipping costs

Bimini-Top ROYAL with 3 arches and Ø 22 mm stainless steel frame

The ROYAL 3 arches Bimini Top is particularly sturdy thanks to the whole stainless steel frame that is easy to assemble and disassemble.

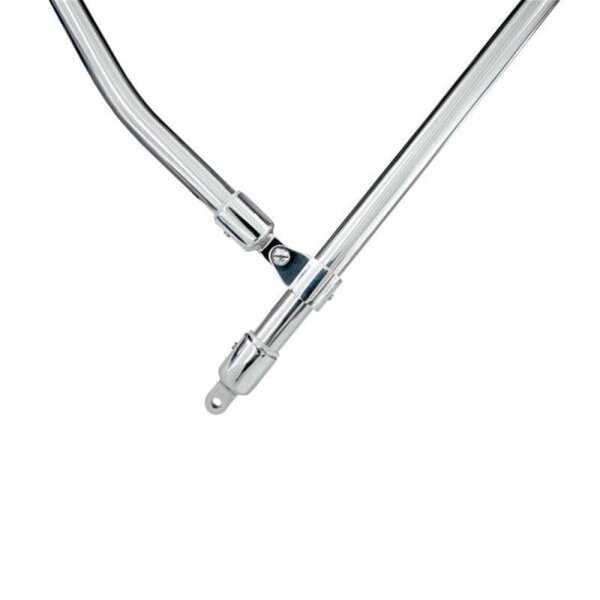

Frame details

Dismountable structure  (Ø 22 mm) AISI 316 polished Stainless steel tubes.

Fabric details

The high-quality, 100% resin-coated acrylic fabric SUNBRELLA® PLUS (360g/m²) is used for the sunroof. It has an anti-fungal coating, making it mold resistant and easy to maintain. Thanks to the resin-based coating, the canvas is waterproof and UV-resistant. The fabric complies with the ISO 4920 standard and is available in 17 different colours. This solution-dyed acrylic fabric features piqué effects and color references to best coordinate with your boat.

Joints and screws

AISI 316 stainless steel joints reinforced and stainless steel screws.

Max. speed

The maximum recommended speed when cruising and the bimini is set up is 25 knots.

Dimensions

The bimini top is available in two different heights (C) 95 cm, 115 cm or 140 cm:

The height (D) of the folded convertible is 120 cm if your choosen height 95 cm, it is 160 cm with a height of 115 cm and 180 cm with a height of 140 cm.

The length (B) is 150 cm (with a height of 95 cm) or 200 cm (with a height of 115 cm) and  230 cm (with a height of 140 cm).

Maßskizze für Bimini-Top

When the bmini top is completely folded and Ready to store the dimensions are: width x 40cm (16") x 8cm(3")

Scope of delivery

  • Zippered storage bag (same colour like the bimini)
  • 1 pair of straps

Please note that the fittings to mount your bimini to your boat are not included. These must be ordered separately.
The scope of delivery only includes the bimini frame fittings (see article picture).

Item information Value
Manufacturer: Nettuno
Category: Bimini-Tops
SKU: 46301
GTIN: 4251967323565
Shipping weight‍: 18,00 kg
Item weight‍: 15,00 kg

Manufacturer information:

NETTUNO MARINE EQUIPMENT SRL
Via Pantanelli 34-36
61025 Montelabbate
PU, Italien

Referenzbilder für das Bimini-Top "ROYAL" mit 3 Bögen

Bimini-Top Royal mit 3 Bögen in rot, montiert auf einem Schlauchboot Sonnenverdeck Royal mit 3 Bögen in rot, montiert auf einem Schlauchboot (Heck).
Measuring the width

The starting point

The first measurement to take is the width between the right centre gunwale to the left centre one of the boat or, in case of an inflatable boat, the width between the right centre tubular to the centre left one.

From this size it can be evaluated which model of Bimini Top can be installed.

Determine the width of the bimini on a sport boat Determine the width of the bimini on a Flybrdige Determine the width of the bimini on a Rib Determine the width of the bimini on a fisher boat
Width Flexibility
Determine the height
Numbers of arches
The fabric
The frame
Jaw Slides
Item review: 0 from 5 Stars

Write the first review for this item and help others make a purchase decision!:

Installation guide for bimini top "Royal"

PDF Installation guide for bimini top "Royal"

Fabric colour chart

PDF Fabric colour chart

SUNBRELLA PLUS fabric datasheet

PDF SUNBRELLA PLUS fabric datasheet
Verlinktes Drop wurde nicht gefunden!
Verlinktes Drop wurde nicht gefunden!

Others also bought:

Stainless steel flush mount deck hinge set with snap...
Stainless steel flush mount deck hinge set with snap hooking system
59,80 € *
Contact data
Question about item
Spam-Schutz wird geladen

Please see our privacy notice
