Bimini-Top ROYAL with 4 arches

from 1.268,70 €
incl. 19% VAT , (Sperrgut 2)

This model is recommended for the installation on boats, RIBs and sailing boats. It is available in two different heights, various sizes and 17 different Colours.

For this product you will receive 1690.9 Reward Points

  • Dimensions
  • Colour

This item has variations. Please select the requested variation.

Must be ordered. Ready for shipment in 7 days after order.
Bimini-Top ROYAL with 4 arches
from 1.268,70 €
incl. 19% VAT , (Sperrgut 2)

Bimini-Top ROYAL with 4 arches and Ø 25 mm stainless steel frame

The ROYAL with 4 arches bimini top is particularly sturdy thanks to the whole stainless steel frame that is easy to assemble and disassemble. This variant achieves its extra stability due to the combination of Ø 25 mm stainless steel tubes and stainless steel joints.

This version with 4 arches further increases the overall stability of the bimini and, thanks to its increased length, also enables a larger base area of the canvas in direct comparison to the "ROYAL" model with 3 arches. It also provides even more shade.

Frame details

Dismountable structure  (Ø 25 mm) AISI 316 polished Stainless steel tubes.

Fabric details

The high-quality, 100% resin-coated acrylic fabric SUNBRELLA® PLUS (360g/m²) is used for the sunroof. It has an anti-fungal coating, making it mold resistant and easy to maintain. Thanks to the resin-based coating, the canvas is waterproof and UV-resistant. The fabric complies with the ISO 4920 standard and is available in 17 different colours. This solution-dyed acrylic fabric features piqué effects and color references to best coordinate with your boat.

Joints and screws

AISI 316 stainless steel joints reinforced and stainless steel screws.

Max. speed

The maximum recommended speed when cruising and the bimini is set up is 25 knots.


The bimini top is available in two different heights (C) 115 cm or 140 cm:
The height (D) of the folded convertible is 170 cm with a height of 115 cm and 190 cm with a height of 140 cm.

The length (B) is 230 cm (with a height of 115 cm) and 260 cm (with a height of 140 cm).

Maßskizze für Bimini-Top

When the bmini top is completely folded and Ready to store the dimensions are: width x 40cm (16") x 8cm(3")

Scope of delivery

  • Zippered storage bag (same colour like the bimini)

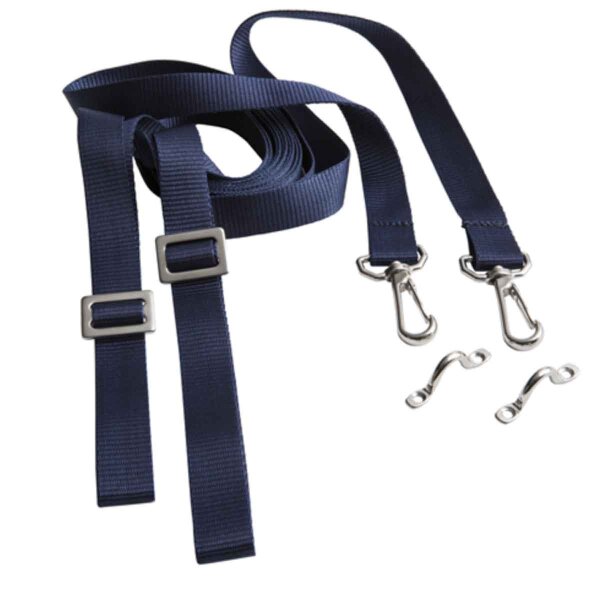

  • 1 pair of straps

Please note that the fittings to mount your bimini to your boat are not included. These must be ordered separately.
The scope of delivery only includes the bimini frame fittings (see article picture).

Manufacturer: Nettuno
Category: Bimini-Tops
SKU: 46345
Type‍: Outlet
Shipping weight‍: 23,00 kg
Item weight‍: 20,00 kg
Measuring the width

The starting point

The first measurement to take is the width between the right centre gunwale to the left centre one of the boat or, in case of an inflatable boat, the width between the right centre tubular to the centre left one.

From this size it can be evaluated which model of Bimini Top can be installed.

Determine the width of the bimini on a sport boat Determine the width of the bimini on a Flybrdige Determine the width of the bimini on a Rib Determine the width of the bimini on a fisher boat
Width Flexibility
Determine the height
Numbers of arches
The fabric
The frame
Jaw Slides


Write the first review for this item and help others make a purchase decision!:

Installation guide for bimini top "Royal"

Fabric colour chart

SUNBRELLA PLUS fabric datasheet
