KUS Spacer Flange / Spacer Ring for SAE 5-Hole Sensor (Stainless Steel)

14,30 €
incl. 19% VAT, plus shipping costs

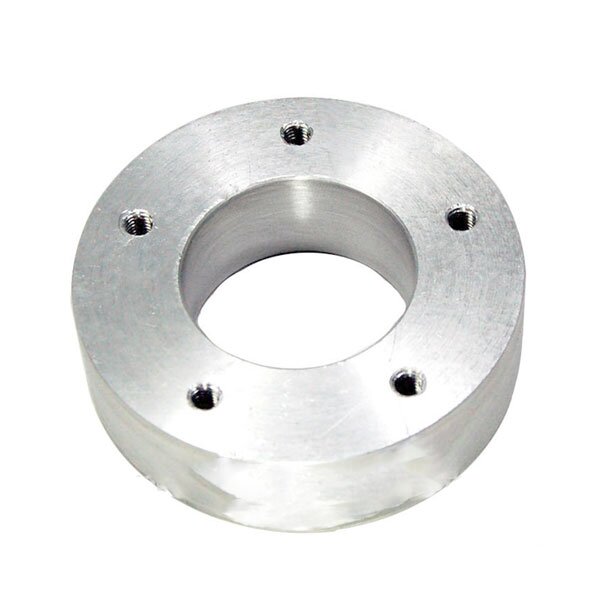

KUS Spacer Flange / Spacer Ring made of stainless steel. Solid SAE 5-hole spacer ring for mechanically raising the sensor head on KUS S5 and NS5 submersible sensors. Prevents cables or flanges from hitting tight tank brackets. Made of AISI 316 stainless steel.

For this product you will receive 14.3 Reward Points
Nur noch 3 Stk auf Lager!
3 Pcs. In stock
Delivery time: 2 - 3 Workdays
Verbleibende Bestellzeit: 19 Stunden und 25 Minuten. Wir versenden Ihre Bestellung am 23.9.

Stock in the external warehouse 16 piece
Delivery time: 3 Working days
KUS Spacer Flange / Spacer Ring for SAE 5-Hole Sensor (Stainless Steel)

KUS Spacer Flange / Spacer Ring for SAE 5-Hole Sensor...

14,30 €
incl. 19% VAT, plus shipping costs

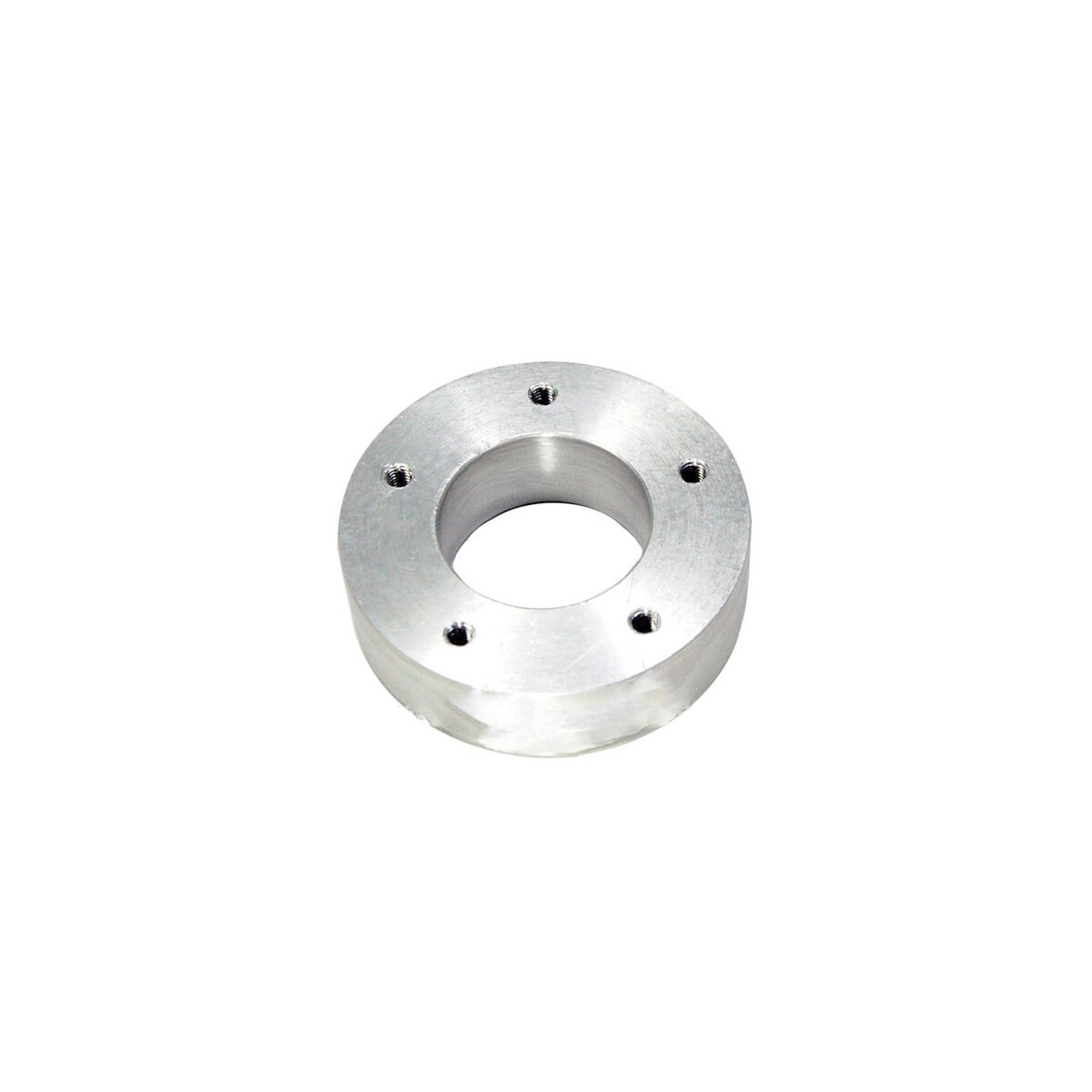

KUS Spacer Flange / Spacer Ring for SAE 5-Hole Sensors – Sturdy Height Compensation Made of V4A

Create the necessary space in tight installation conditions on your boat! The original KUS spacer flange / spacer ring is designed to mechanically raise S5 and NS5 series dip tube sensors. It is simply placed between the tank opening and the sensor flange. This is the ideal solution when thick tank insulation needs to be bridged or when the sensor’s cable outlet requires more clearance to the tank console.

Advantages & Technical Highlights at a Glance:

  • Premium V4A stainless steel: Entirely manufactured from saltwater- and acid-resistant AISI 316 stainless steel. Completely rust-free and resistant to aggressive fuels such as gasoline and diesel.
  • Precise Fit: Cut exactly to the international SAE 5-hole standard (54 mm bolt circle) for an absolutely flat and leak-free installation.
  • Universal Use: Compatible with all analog and digital KUS flange-mounted sensors as well as tank openings with an identical bolt pattern.

Technical Data (Specifications):

Property Specification / Value
Manufacturer / Brand KUS
Material Stainless steel AISI 316 (V4A) / Marine grade
Standard hole pattern SAE 5-hole (54 mm bolt circle diameter)
Compatibility KUS Model S5, KUS Model NS5 (NMEA 2000)
Item information Value
Manufacturer: KUS
Category: KUS Instruments
SKU: 33106
Shipping weight‍: 0,30 kg
Item weight‍: 0,20 kg
